Features & Benefits:

• 20 kN WLL / 100 kN MBS
• Hot forged aluminum side plates with rope friendly rounded cheeks
• Precision CNC machined aluminum sheaves with wide bend radii
• Low profile, secure, easy to-open captive screw pin lock
•  High wall, full diameter, improved anchor sling protection

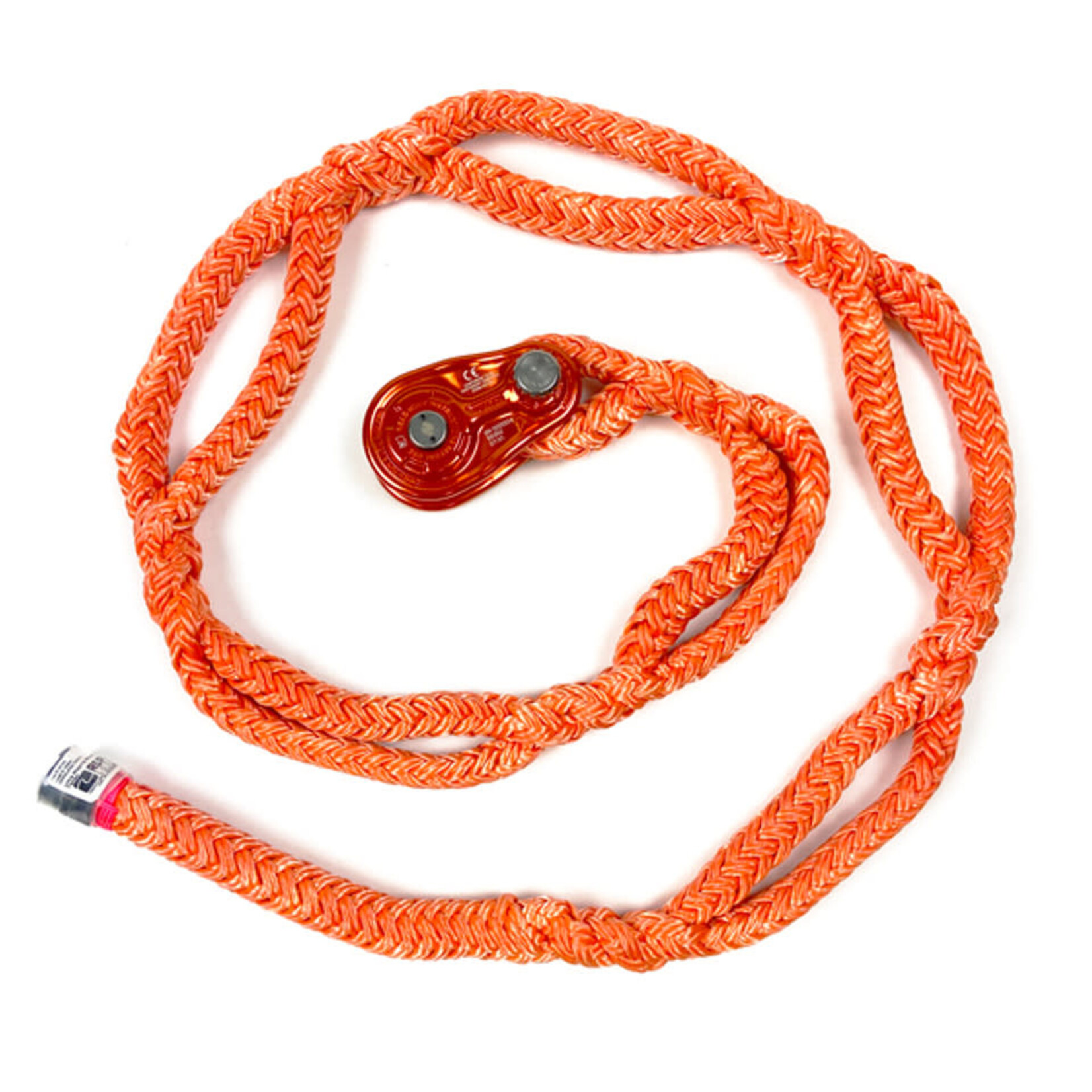

•  Wide, concave upper sheave accepts 5/8” anchor slings
• Flared side-plates reduce twisting in complex rigging scenarios

Specifications:

• WORKING LOAD LIMIT (WLL) 20 kN (4,496 lbs.)
• MBS 100 kN (22,480 lbs.)
• MAX WORKING LINE DIAMETER 1/2 in (13mm)
• MAX SLING DIAMETER 5/8 in (16mm)
• UPPER SHEAVE DIAMETER .75 in (19mm)
• LOWER SHEAVE DIAMETER 1.5 in (38mm)
• HEIGHT 4.7 in (118mm)
• WIDTH 2.7 in (68mm)
• WEIGHT 1 lb. (.45kg)
• SIDEPLATE MATERIAL Aluminum
• SHEAVE MATERIAL Aluminum
• AXLE MATERIAL Stainless Steel
